here you will find all the PCBs for microphone preamps and olther stuff available for your DIY projects
It's been several years since I redesigned according to the original plans the best legendary tube and transistor preamps that made the history of recorded music
you will find a BOM pdf for each project with the description of the components and e that you need to make your DIY machine
be careful only the PCBs are available, I do not offer a complete kit
you can select in the items the reference to add to your basket
G.A.R will in no way be held responsible (financially or otherwise) for equipment that is damaged from the use of parts purchased from us.
It is the responsibility of the customer to consult with a qualified technician for the selection of proper parts replacement and proper installation of these items.
For USA shipping please select = " États-Unis "
For UK shipping please select = " Royaume-Unis "
Microphone Preamplifier selection
24,00 €
- disponible
- 1 à 3 jours de délai de livraison
GAR
SERIE (A)
uk mic preamp
The (A) serie "range desk" is the clone of the discrete design preamp used on the legendary English consoles during the golden years of rock
made in 1971 in only 13 copies
the serial pcb allows you to make your own preamp for your recording studio
SPECIFICATIONS
- PCB only
- 70db GAIN
- in & out tranformer
- +48vdc
- switch gain pcb
- pcb size = 100x65mm
PCB-312
(new version 2023)
This mic preamp was replicate from vintage 312 American pre
Only pcb available
Specifications
- Only pcb available
- DOA compactible 2520 , 990, ect ect ...
- 70db Gain
- UTM Transformer IN & OUT
- Easy to build
- Easy to custom with PAD , T-PAD, H-PAD, PHASE , Output volume ect...

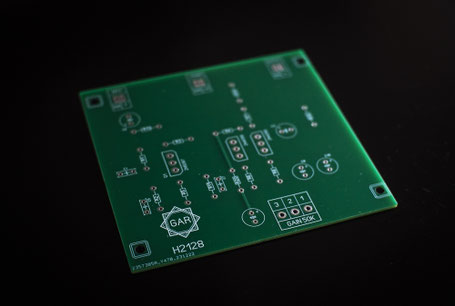

Helios 2128
This mic preamp was replicate from vintage Helios olympic UK preamp
Only pcb available
- PCB card only
- GAIN 60 db
- Silicone transistor
- High quality PCB
- Easy to build
- BOM & all documents download
- Easy to custom with PAD , T-PAD, H-PAD, PHASE , Output volume ect...

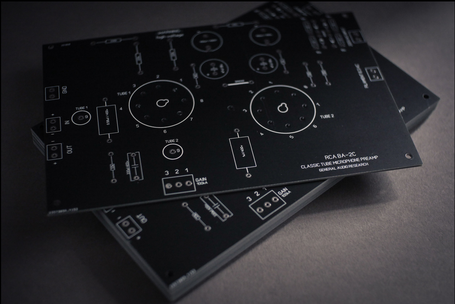

BA-2C
The RCA BA-2C is a 1950’s tube microphone preamp
this bord offer a possibility to make this American legendary preamp
SPECIFICATIONS
- PCB card only
- GAIN 50 db
- 2X 6j7 tubes
- PSU high voltage rectifier direct on pcb
- High quality PCB
- Easy to build
- BOM & all documents download

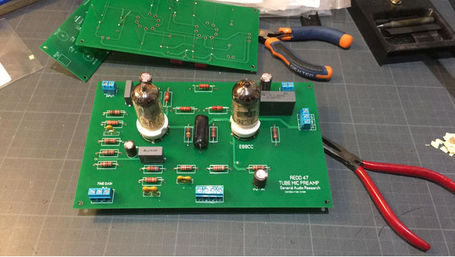

RED-47
MIC PREAMP
RED-47 Mic Amplifier is a recreation of the original valve line amplifiers used in famous UK Studios
this bord offer a possibility to make this legendary preamp.
It can be used as a microphone preamp or instrument preamp easily.
SPECIFICATIONS
- PCB card only
- GAIN switch selections : 34,40,46 db
- Fine gain ( 2 db original schematics )
- ef86 tube
- e88cc tube
- High quality PCB
- BOM & all documents download
SPECIFICATIONS
- PCB CARD ONLY
- GAIN 40db
- 6F5 TUBE
- 6C5 TUBE
- High quality PCB
- BOM & all documents download
W295b
GAR offers you the PCB for recreation of the legendary W295b vintage analog EQs from the 60s
used in sitral consoles
These were one of the first ones that used transistor based amps
this eq is amazing for various electronic music styles.
SPECIFICATION
- PCB only !
- BOM available
- size = 200x120 mm
- Lundahl Transformer in & out
- Vintage transistors
- Switch low shelve -15 / -15db 60hz
- Switch High shelve -15 / -15db 18khz
- Switch middle frequency 0.7, 1, 1.5 , 2.3, 3.5 , 5.6 khz
- Switch Gain middle -8 / +8db
- Volume potentiometer output after transformer
-
possibility of calibrating output it at your will (trimer inside )
- True Bypass switch
- XLR IN & OUT
You need
- power supply +24VDC
- Rack1u +parts
- All parts
