MULTI PSU

POWER SUPPLY

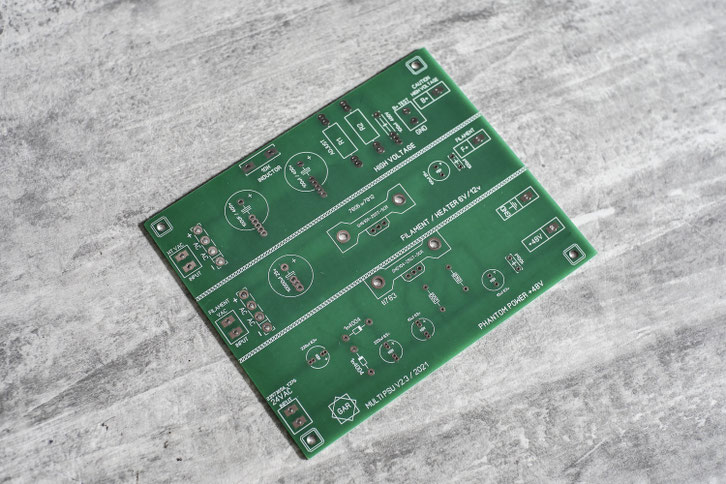

PCB

Perfect for tube microphone preamps

This solid state power supply is capable of providing a high voltage power supply + filament 6vdc or 12vdc and + 48vdc for the condenser microphone

SPECIFICATIONS

• Diode rectifier power supply
• Rail HT + inductor
• Rail heater DC  regulated  (6 or 12vdc)     (1.2A max )
• Rail Phantom power +48vdc   (max 4 mic)  (the tension V-out can be adjusted by one resistance)
• Rail GND
• Size pcb = 130x107mm
• PCB ONLY

(1.4old version)
